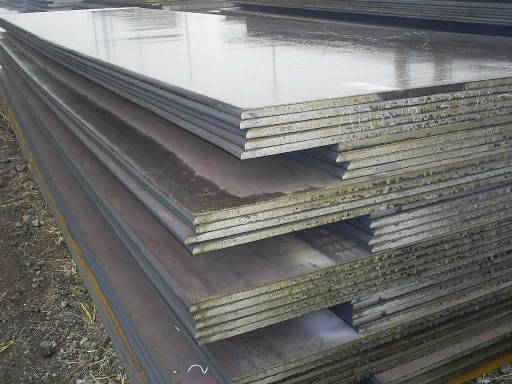

HGM400 Wear Resistant Steel Plate
HGM400 from Haverer Group is an abrasion resistant steel plate that offers outstanding wear and impact resistance.HGM400  is high-strength and wear-resistant steel with favourable hardness and impact toughness.

With HGM400  you can extend the lifespan of machinery, decrease wear in structural components and save costs. It also enables innovative design and lightweight products improving energy efficiency and lowering fuel costs.

HGM400 steel plates are premium abrasion resistant steel plates that are heat treated and exhibit through-hardening, improved forming and welding capabilities. HGM400 steel plates are suitable for mining, forestry and construction applications that require a good level of abrasion resistance. Each producing mill has its own proprietary chemical composition and heat treating process. Mill specific specifications are available upon request.

HGM400 plate from Leeco combines through-hardness and toughness with superior flame cutting, forming, & welding characteristics. With a typical bhn hardness of 360 – 440, this user friendly grade permits more latitude in design and fabrication for the end user. Typically this grade can be found in bucket components, construction equipment, and in the wear plates of mining equipment as well. Available in 6-100mm thick, width usually 2200mm and length 8000mm this product will last up to 4 times longer than ordinary high-strength structural plate.

Chemical Requirements:
Mill specifications available upon request

Mechanical Requirements:
Hardness
 360 – 440 HB

Size:
 Thickness: 6mm - 200mm, width: 1000mm - 2500mm

Mechanical Properties:
 Tensile strength: 1250MPa
 Yield Strength: 1000MPa
 Elongation: 10%

Impact Strength
 CVNL average values of 15ft. lbs at -40° F

Cutting
 HGM400 can be cut to your specifications with plasma, oxy-Acetylene, laser, and water jet as well as with abrasive cut off saws.

Machining
 Drilling, countersinking, counterboring, tapping, milling, and general machining can be done with conventional equipment and carbide tools.

Forming
 HGM400 is made for improved formability with low levels of carbon and sulphur for inclusion shape control.

Welding
 HGM400 has excellent weldability and can be welded with simple procedures and common consumables such as E7018.

Applications:
 Buckets and containers
 Cutting edges for earth moving machines
 Wearing parts for mining machines
 Wearing parts for concrete mixing plants and wood processing machines
 Platform structures
 Feeders, funnels
